Mitsubishi Electric 18.0KW PEA-M180LAA / PUZ-ZM180VKA Ducted Air Conditioner

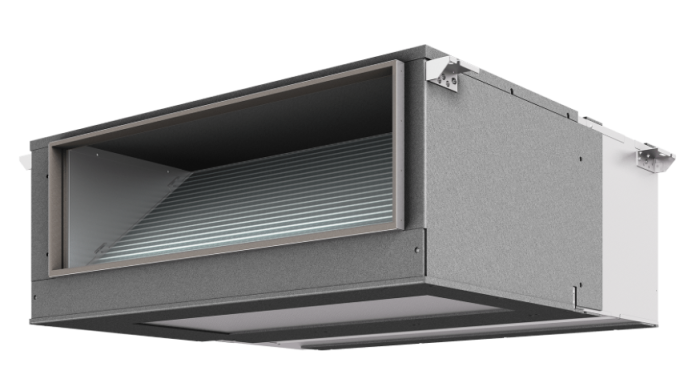

Mitsubishi Electric PEA-M LAA Series – High-Performance Ceiling Concealed Air Conditioner
The Mitsubishi Electric PEA-M LAA Series is an advanced high-static pressure ducted air conditioning system designed for powerful climate control with seamless ceiling integration. Built for residential and commercial applications, this system offers enhanced efficiency, superior airflow, and whisper-quiet operation, making it an ideal choice for large spaces and multi-room setups.
Key Features & Benefits
- Inverter Technology: Provides consistent cooling and heating with optimized energy efficiency.
- High Static Pressure: Capable of delivering airflow over long duct runs.
- Compact & Flexible Design: Designed for seamless installation into ceiling spaces.
- Quiet Operation: Low noise levels for ultimate indoor comfort.
- Wi-Fi Control Compatible*: Upgrade for remote operation via the Mitsubishi Electric Wi-Fi Control.
- Eco-Friendly R32 Refrigerant: Reduces environmental impact while maintaining peak efficiency.
Technical Specifications
Model Options:
- PEA-M180LAA
Cooling Capacity: 18.0 kW
Heating Capacity: 20.0 kW
Refrigerant: R32
- PEA-M200LAA
Cooling Capacity: 20.0 kW
Heating Capacity: 22.4 kW
Refrigerant: R32
- PEA-M250LAA
Cooling Capacity: 25.0 kW
Heating Capacity: 27.0 kW
Refrigerant: R32
Why Choose Mitsubishi Electric?
Mitsubishi Electric is known for cutting-edge technology and premium air conditioning solutions. The PEA-M LAA Series provides powerful and efficient temperature control, designed to handle the needs of large residential homes and commercial buildings.
Get a Free Quote Today!
Upgrade your indoor climate with the Mitsubishi Electric PEA-M LAA Series. Contact us today for expert advice, professional installation services, and exclusive deals!
| PEA-M LAA Series (Ceiling Concealed) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | PEA-M180LAA | PEA-M200LAA | PEA-M250LAA | ||||||
| Outdoor Unit | PUZ-ZM180V/YKA | PUZ-ZM200YKA | PUZ-ZM250YKA | ||||||
| Refrigerant | R32 | ||||||||
| Power Supply | Source | Indoor/Outdoor Separate Power Supply | |||||||
| Outdoor | V: 230 V, Single-phase, 50 Hz Y: 400 V, Three-phase, 50 Hz | ||||||||
| Indoor | 230 V, Single-phase, 50 Hz | ||||||||
| Cooling | Capacity [Min-Rated-Max] | kW | 4.90 - 18.00 - 20.00 | 4.90 - 20.00 - 22.40 | 6.30 - 24.50 - 24.50 | ||||
| Total Input [Rated] | kW | 5.52 | 6.40 | 8.00 | |||||
| AEER/EER | - | 3.20/3.26 | 3.07/3.12 | 3.02/3.06 | |||||
| TCSPF (Residential) | Hot | 4.62 | 4.62 | 4.33 | |||||
| Average | 4.16 | 4.13 | 3.94 | ||||||
| Cold | 4.23 | 4.25 | 4.04 | ||||||
| Running Current [Rated] | A | 22.23/5.45 | 10.29 | 12.50 | |||||
| Sound Pressure Level | In (Lo - Mid2 - Mid1 - Hi) | dBa | 30 - 37.5 - 42 - 46 | 30 - 37.5 - 42 - 46 | 32.5 - 40 - 45.5 - 48.5 | ||||
| Out (PWL) | dBa | 58 (74) | 60 (75) | 60 (75) | |||||
| Air Volume (In) Lo - Mid2 - Mid1 - Hi | L/s | 600 - 833 - 1017 - 1200 | 600 - 833 - 1017 - 1200 | 700 - 967 - 1200 - 1400 | |||||
| Heating | Capacity [Min-Rated-Max] | kW | 5.40 - 20.00 - 22.40 | 5.70 - 22.40 - 25.00 | 7.90 - 28.00 - 29.00 | ||||
| Total Input [Rated] | kW | 5.10 | 5.90 | 7.50 | |||||
| ACOP/COP | - | 3.84/3.92 | 3.72/3.79 | 3.67/3.73 | |||||
| HSPF (Residential) | Hot | 4.79 | 4.38 | 4.59 | |||||
| Average | 4.18 | 3.78 | 3.89 | ||||||
| Cold | 3.58 | 3.41 | 3.40 | ||||||
| Running Current [Rated] | A | 20.97/5.46 | 9.29 | 11.14 | |||||
| Sound Pressure Level | In (Lo - Mid2 - Mid1 - Hi) | dBa | 30 - 37.5 - 42 - 46 | 30 - 37.5 - 42 - 46 | 32.5 - 40.0 - 45.5 - 48.5 | ||||
| Out (PWL) | dBa | 60 (76) | 60 (76) | 60 (76) | |||||
| Air Volume (In) Lo - Mid2 - Mid1 - Hi | L/s | 600 - 833 - 1017 - 1200 | 600 - 833 - 1017 - 1200 | 700 - 967 - 1200 - 1400 | |||||
| Indoor Unit | Dimensions [HxWxD] | mm | 470 x 1370 x 1120 | 470 x 1370 x 1120 | 470 x 1370 x 1120 | ||||
| Weight | kg | 88 | 88 | 88 | |||||
| Static Pressure | Pa | 75 - 100 - 150 - 200 - 250 | 75 - 100 - 150 - 200 - 250 | 75 - 100 - 150 - 200 - 250 | |||||
| Max. Running Current | A | 4.80 | 4.80 | 4.80 | |||||
| Outdoor Unit | Dimensions [HxWxD] | mm | 1338 x 1050 x 330 (+40) | 1338 x 1050 x 330 (+40) | 1338 x 1050 x 330 (+40) | ||||
| Weight | kg | 115/116 | 136 | 139 | |||||
| Max. Running Current | A | 28.22 (V)/9.27 (Y) | 18.00 | 20.00 | |||||
| Breaker Size | A | 40 (V)/ 16 (Y) | 25 | 25 | |||||
| Ext. Piping | Diameter [Liquid/Gas] | mm | ø9.52/ø19.10 | ø9.52/ø22.20 | ø12.70/ø22.20 | ||||
| Max. Length/Height | m | 75/30 | 100/30 | 100/30 | |||||
| Guaranteed Operating Range [Outdoor] | Cooling | °C | -5(-15) ~52 | -5(-15) ~52 | -5(-15) ~52 | ||||
| Heating | °C | -20 ~ 21 | -20 ~ 21 | -20 ~ 21 | |||||
| Supply Air Duct | mm | 1100 x 340 | 1100 x 340 | 1100 x 340 | |||||
| Return Air Duct | mm | 1100 x 420 | 1100 x 420 | 1100 x 420 | |||||
| Pre-Charge Refrigerant | kg | 5.0 (30m) | 5.5 (50m) | 6.5 (50m) | |||||
| Additional Refrigerant | g/m | 70 | 70 | 90 | |||||
| Cooling Capacity (kW) | 18.00 |
|---|---|
| Heating Capacity (kW) | 20.00 |
